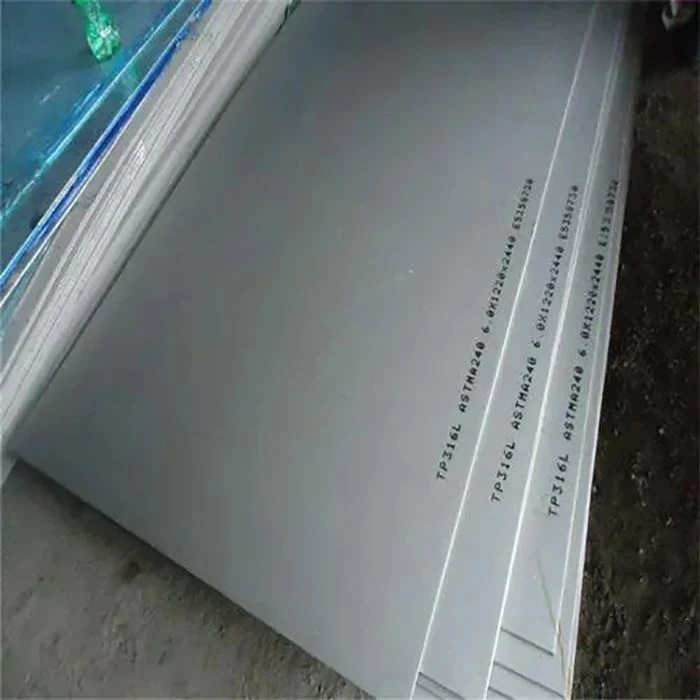

Stainless Steel 316L Sheet

316L stainless steel, also called marine grade stainless steel, is used primarily for its increased resistance to corrosion.

chromium-nickelmolybdenum austenitic stainless steel
Standard:ASTM, ASME, BS, DIN, EN
Technique:Hot rolled,Cold rolled
Quick delivery and standard exporting package
OEM/ODM

Send Inquiry

Description

316L is a type of molybdenum-bearing austenitic stainless steels, a low carbon version of SS 316, with the addition of molybdenum to improve its corrosion resistance.One of its important constituent elements is chromium, which gives it excellent oxidation resistance. 316L steel also contains low carbon content to avoid intergranular corrosion in high temperature environments.

316L stainless steel sheet is a type of alloy that can resist atmospheric corrosion, moderate oxidizing and reducing environments, and polluted marine atmospheres. The alloy has outstanding resistance to intergranular corrosion in the as-welded condition, as well as excellent strength and toughness at cryogenic temperatures.

316L plate has excellent resistance to corrosion in various environments, including marine and industrial environments, and is commonly used in the chemical, petrochemical, and food processing industries.

316L SS Plate

316L Stainless Steel Sheet Specification

Length	2000mm/ 2440mm/ 2500mm/ 3000mm/ 6000mm/ 8000mm/ 10000mm or any length
Width	1000mm/ 1220mm/ 1250mm/ 1500mm/ 1800mm/ 2000mm/ 2500mm
Thickness	0.05mm-280mm
Standard	AISI,ASTM,DIN,JIS,GB ,JIS,SUS,EN,etc
Technique	Hot rolled / cold rolled
Surface Treatment	No.1/No.3/No.4/HL/2D/2B/BA/4B/8K
Thickness Tolerance	Cold rolling: ±0.02mm Hot rolling: ±0.05mm
Material	201J1/201J2/202/304/304L/304H/316/316L/316Ti/321/309S/310S/904L/410/420J1 /420J2/430/441/443/436/439/409/409L/1.4529(NO8926)/S32760/347H/317L/ etc
MOQ	1 ton
Capacity	20000 tons/month

316L Steel Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17-11-02 / Z3CND18-14-03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

SS 316 316L Chemical Composition

Element	316L
Chromium	16.0 min.-18.0 max.
Nickel	10.0 min.-14.0 max.
Molybdenum	2.00 min.-3.00 max.
Carbon	0.030
Manganese	2.00
Phosphorus	0.045
Sulfer	0.03
Silicon	0.75
Nitrogen	0.1
Iron	Balance

316L Steel Sheets Mechanical Properties

Tensile Strength ksi (min)	Yield Strength 0.2% ksi (min)	Elongation %	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
70	25	40	217	95

316L Stainless Plate Surface Finish

316L Stainless Steel Sheets are available in various surface finishes, including 2B (cold-rolled, annealed, and pickled), No. 4 (brushed finish), and others, depending on the specific requirements of the application.

316l stainless sheet

316L Plate Processing Service

316L steel sheets has been precision processed, has good surface quality and flatness, and is easy to cut, bend and weld,has great advantages in factory production, engineering assembly and machining.

316 l ss
