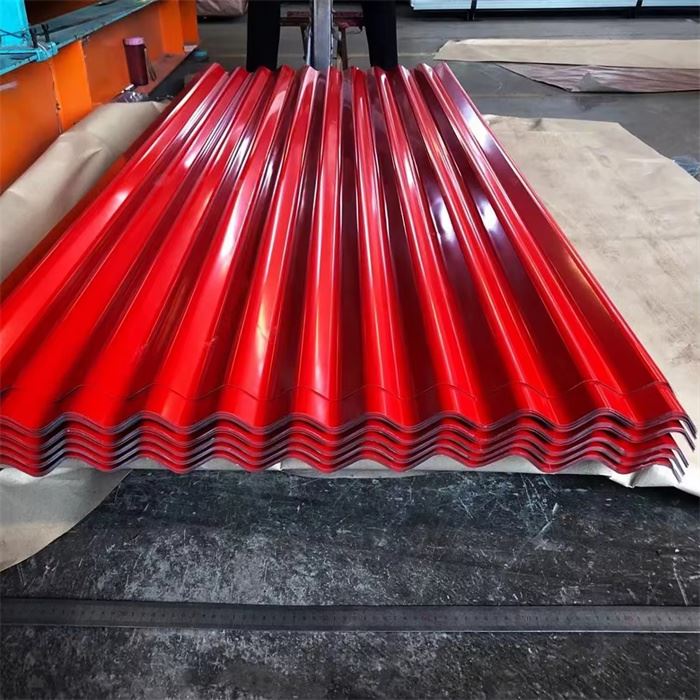

PPGI Corrugated Sheet is a pre-coated galvanized steel pressure sheet, also known as pre-coated steel, coil coated steel or color coated steel, etc,use hot-dip galvanized steel sheet as substrate and pre-coated on its surface,rolled into a variety of forms of pressure plate,enhances its resistance to rust and corrosion, with variety model for select.
Prepainted Galvanized Corrugated Sheet are corrosion-resistant, UV-resistant, and beautiful. They are commonly used in roofing, construction, home appliances, automobiles, and other fields.
PPGI Corrugated Sheet Specification
| Technique of production | Double painting and double baking process Double painting and one baking process |
| Standard | AISI, ASTM, GB, JIS |
| Material | SGCC, DX51D |
| Thickness | 0.14-1.5mm(or as per customer's requirements) |
| Width | 665-1070mm( normal 950, 960, 1050mm, etc) |
| Length | 1800-11800 meters(common) |
| Tolerance | +/-0.02mm |
| Zinc coating | 30-275g/m2 |
| Painting | Top: 15 to 35 um; back: 5-30 um |
| Surface coating type | PE(regular), SMP, HDP, PVDF |
| Surface coating color | ALL Colors in RAL Cards |
| Certification | ISO 9001-2008, SGS, CE, BV |
Prepainted Corrugated Sheet Types
To get the ppgi corrugated sheet price, below information is needed:
1.Width of sheet after corrugated.
2.Thickness of sheet
3.Wave height
4.Wave distance
PPGI Features
- Resistant to wear and crack:Excellent chemical resistance,good alkali-resistant metal and acid energy.
- Corrosion resistance:Good corrosion resistance,not easy to be corroded into the interior by corrosive gas or liquid.
- Weather resistance:Excellent weather resistance,high gloss retention,good color stability,small color variation.
- Ductility:It has good ductility and can not be easily damaged in all kinds of bending,handling and impact.
Prepainted Galvanized Steel Structure
PPGI (Color coated steel coil) is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemical treatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. This product is produced by the manufacturer in coils on the continuous production line, so it is also called prepainted steel coil. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good corrosion resistance.
Prepainted Steel Coil Layer
- Top (Finish) Coating (PE/HDP/PVDF, etc.)
- Primer Coating
- Pre Treatment (Chromate Coating)
- Plating Layer (Zn, AL, 55%AL+Zn)
- Base Metal (Cold Rolled Steel Sheet)
- Plating Layer (Zn, AL, 55%AL+Zn, Sn, Cr, etc.)
- Pre Treatment (Chromate Coating)
- Functional Painting (Epoxy, Polyester)
Coating Types of Prepainted Steel Coil
Good coating for steel structure has good mechanical properties and excell ent anti-corrosion properties. It has good stability to climate and oil - water mixture. To have a good visual effect, beautiful and generous in the decoration.The coating types currently used for PPGI/PPGL steel coil include PE, PVDF, SMP, acrylic, PVC, etc.
Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and
anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.
Galvanized Corrugated Sheet Quality Inspection
In the industry, the produced galvanized roofing sheets are strictly undergoing several testing that is assuring the suppliers in supplying quality. The testing in the industry is conducted by the experts. The tests that are taking place is positive material identification test, hardness test, pitting resistance test, intergranular corrosion test, flattening/flaring test, mechanical test, macro/micro test, chemical test,and third-party inspections are also performed on the demand of the clients.
Galvanized Sheet Packing & Delivery
Export Seaworthy Packing:A water proof paper + An inhibitor film + A steel sheet cover with steel edge protectors and sufficientsteel straps or customized according to the need to develop different ways.
Port:Tianjin/Qingdao,or as required
Delivery Time:15 -20 Work Days,depending on the quantity
 |
 |
 |
 |
About US JBLSTEEL-A Professional Steel Suppliers
HENAN JINBAILAI INDUSTRIAL CO.,LTD. was established in 2008,and it is a large-scale comprehensive enterprise group, combining steel trade, processing of steel, steel raw materials, and other industries,with primary production lines, which include pickling, cold rolling, hot-dip galvanizing, thick plate galvanizing, and color coating.We supply various sepcifications of Stainless Steel,Super Stainless Steel,Super Duplex,High Strength Steel Plate,Wear Resistant Steel Plate, Galvanized Steel,etc.
The inventory is sufficient and various,supporting processing and customization.For general information about our products or a free quote, do contact us.
PPGI FAQ
Q:What about your PPGI Coil price?
A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our galvanized coil.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the quantity you need to purchase.
Q:Will you can accept the customized and OEM galvanized steel products?
A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.
Q: What are your payment terms?
A: We can accept the TT,LC or Negotiation
