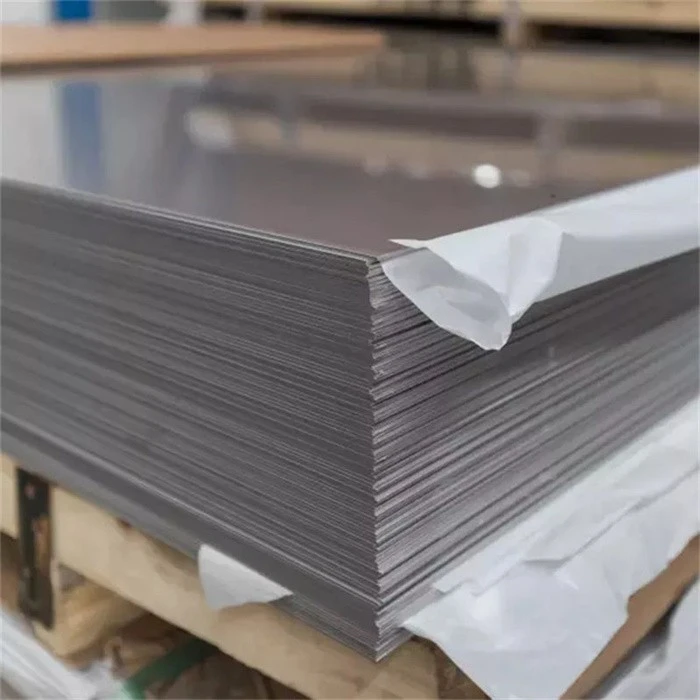

Stainless Steel 304 Sheet
304 stainless steel is part of the austenitic family of stainless steel and they are one of the most versatile and widely used varieties of stainless plate.
304 Stainless Plate, the most widely used of the stainless and heat resisting steels. 304 stainless plate offers good corrosion resistance to many chemical corrodents as well as industrial atmospheres and marine environments.Typical specifications for 304 Plate are ASTM A-240, ASME SA -240 and A666.
Stainless Steel 304 Sheet Specifications
| Product Name | Stainless Steel 304 Sheet |
| Materials |
200series:201/202 300 series:301/304/304L/316/316L 400 series:410/420/430 |
| Technique | Cold Rolled, Hot Rolled |
| Thickness | 0.20-18.0mm |
| Width | 6-1500mm |
| Length | As per your requirement |
| Finish | Embossment, drawbench, polishing, frosting, copper surface, defend bath surface, color, elevator surface and so on. |
| Standard | ASME, ASTM, EN ,BS,GB,DIN, JIS etc |
| Application | Petroleum, chemistry, electricity, paper making, alkali making, irrigation works, automotive, salt, medicine, food, and public facilities |
| Package | Standard export seaworthy package |
| Payment term | TT, L/C, DP or Negotiable |
Stainless Steel 304 Sheet Spec Charts
-Hot Rolled, Annealed and Pickled
| Thickness and Width | Weight Lbs. per Sq. Ft. | Weight Lbs. per Length | Length |
|---|---|---|---|
| 3/16 x 48 | 8.579 | 343.16 | 10' |
| 1/4 x 48 | 11.16 | 357.12 | 8' |
| 1/4 x 48 | 11.16 | 446.40 | 10' |
| 5/16 x 48 | 13.75 | 550.00 | 10' |
| 3/8 x 48 | 16.50 | 660.00 | 10' |
| 1/2 x 48 | 21.63 | 865.20 | 10' |
| 5/8 x 48 | 26.83 | 1,073.20 | 10' |
| 3/4 x 48 | 32.12 | 1,284.80 | 10' |
| 1 x 48 | 42.67 | 1,706.80 | 10' |
| 1 1/2 x 48 | 63.34 | 2,533.60 | 10' |
304 SS sheet Surface Finish
Flexible Stainless Steel Grade 304 Sheet is known to be the most widely used and flexible austenitic form of stainless steel. It contains 8% nickel and 18% chromium, making it ultra-resistant to corrosion and oxidation. It is also highly durable and can be fabricated with ease. Cleaning the metal is also easy, and it is available in various appearances and finishes.
304 Sheet Technical Data
| 304 STAINLESS COMPOSITION | |
| IRON | & alloying elements: |
| CARBON | 0.08% (max) |
| CHROMIUM | 18-20% |
| MANGANESE | 2% (max) |
| NICKEL | 8-10.5% |
| PHOSPHORUS | 0.045% (max) |
| SULFUR | 0.03% (min) |
| SILICON | 1% (max) |
304 SS Sheet Physical property:
Strength of extension: σb ( MPa )≥520
Yield strength σ0.2 (MPa) ≥205
Elongation: σ5(%)≥40
Percentage reduction of area: Ψ(%)≥60
304 Steel Mechanical Properties
| Temper | 304 | |
| Tensile Rm | 76 | ksi (min) |
| Tensile Rm | 517 | MPa (min) |
| R.p. 0.2% Yield | 31 | ksi (min) |
| R.p. 0.2% Yield | 207 | MPa (min) |
| Elongation (2" or 4D gl) | 40 | % (min) |
Stainless steel alloy 304 offers good corrosion resistance, strong weldability, and excellent formability, allowing it to be used in a number of different applications across several industries.
If you have any need,feel free to contact us for more info!!!
