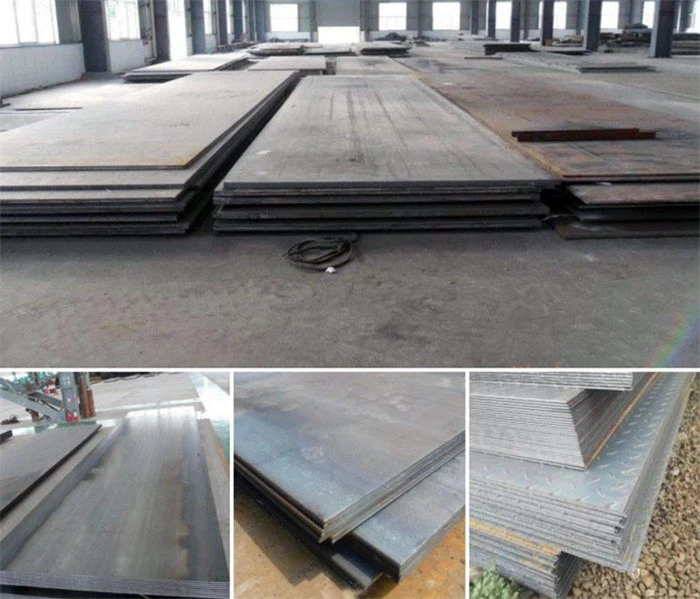

AR235 Abrasion Resistant Steel Plate
Abrasion resistant plates are medium carbon steel components. The Ar235 Plate is a versatile grade that is designed to resist wear in the systems. Designed to provide good stability they have good tolerance to tear and wear compared to standard carbon steel components.
AR235 steel plate is a carbon-manganese steel product with a nominal hardness of 235 Brinell (HBW). It is intended for moderate wear applications. AR235 is available as mill plate, temper leveled plate or as coils. AR235 is not intended for structural applications.
The robust ar235 steel has enhanced toughness and has a Brinell hardness of a minimum of 200-250HB. The steel components have moderate strength and can be widely seen in structural grade applications.

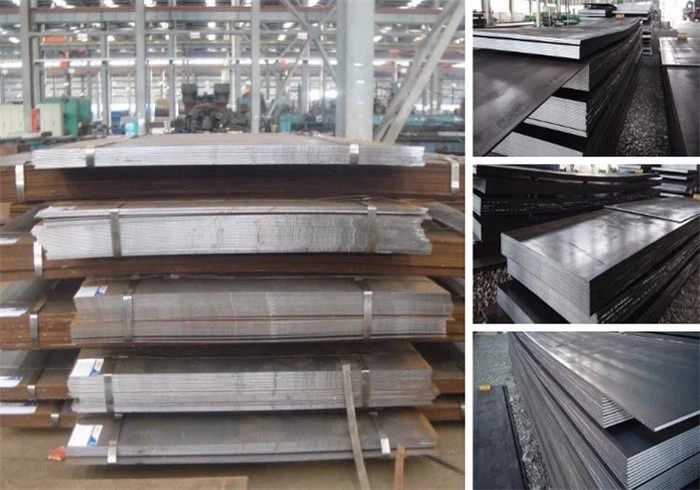

Specification of Ar235 Plates
|
Specification |
AR200/AR235 AR400F AR450F AR600 |
|
Technology |
Hot Rolled |
|
Outer Diameter Size |
3/8" NB To 30" NB (Nominal Bore Size), A213 -3/8"OD To 5"OD |
|
Wall Thickness |
0.3mm-300mm |
|
Length |
12 Meters, 6 Meters, Single Random Length, Double Random Length And Customize Size. |
|
Dimension |
All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
AR235 Abrasion Resistant Plate Gauge Chart
| Gauge | Length | Width |
| 1/2“ | 240/288 | 96 |
| 5/16“ | 240/288 | 96 |
| 1/4“ | 240/288 | 96 |
| 3/8“ | 240/288 | 96 |
| Thickness inches. |
lbs. per sq. ft. | Thickness inches |
lbs. per sq. ft. | ||||||
| Tol. Range |
|||||||||
| Gage No. | Dec. Equiv. | H.R. & P. & O |
Cold Rolled | Wt. Equiv. | Gage No. | Dec. Equiv. | Tol. Range C.R. |
Wt. Equiv. | |
| 4 | .2242 | .2332 .2152 |
9.375 | 19 | .0418 | .0458 .0378 |
1.75 | ||
| 5 | .2092 | .2182 .2002 |
8.75 | 20 | .0359 | .0389 .0329 |
1.5 | ||
| 6 | .1943 | .2033 .1853 |
8.125 | 21 | .0329 | .0359 .0299 |
1.375 | ||
| 7 | .1793 | .1873 .1713 |
.1883 .1703 |
7.5 | 22 | .0299 | .0329 .0269 |
1.25 | |
| 8 | .1644 | .1724 .1564 |
.1734 .1554 |
6.875 | 23 | .0269 | .0299 .0239 |
1.125 | |
| 9 | .1495 | .1575 .1415 |
.1585 .1405 |
6.25 | 24 | .0239 | .0269 .0209 |
1.0 | |
| 10 | .1345 | .1425 .1265 |
.1405 .1285 |
5.625 | 25 | .0209 | .0239 .0179 |
.875 | |
| 11 | .1196 | .1276 .1116 |
.1256 .1136 |
5.0 | 26 | .0179 | .0199 .0159 |
.75 | |
| 12 | .1046 | .1126 .0966 |
.1106 .0986 |
4.375 | 27 | .0164 | .0184 .0144 |
.688 | |
| 13 | .0897 | .0967 .0827 |
.0947 .0847 |
3.75 | 28 | .0149 | .0169 .0129 |
.625 | |
| 14 | .0747 | .0817 .0677 |
.0797 .0697 |
3.125 | 29 | .0135 | .0155 .0115 |
.562 | |
| 15 | .0673 | .0733 .0613 |
.0723 .0623 |
2.812 | 30 | .0120 | .0130 .0110 |
.50 | |
| 16 | .0598 | .0658 .0538 |
.0648 .0548 |
2.5 | |||||
| 17 | .0538 | .0598 .0478 |
.0548 .0498 |
2.25 | |||||
| 18 | .0478 | .0528 .0428 |
.0518 .0438 |
2.00 | |||||
AR235 Abrasion Resistant Steel Plate is a high-strength steel that is designed to withstand extreme wear and tear. It is the ultimate choice for heavy-duty applications where abrasion resistance is critical.
AR 235 Steel Plates Chemical Properties
| SI | C | P | MN | S |
|---|---|---|---|---|
| 0.35% | 0.4% | 0.025% | 1.5% | 0.010% |
Mechanical Properties of Alloy Ar235 Plates
| MECHANICAL PROPERTIES | Imperial | Metric |
| Tensile Strength, Yield | 70,000 psi | 483 MPa |
| Tensile Strength, Ultimate | 90,000 psi | 621 MPa |
Characteristics of AR 235 Plate
- It's designed for moderate wear and isn't meant to be used in structural or load-bearing applications.
- AR200 and AR235 are the two grades available.
- 185-255 BHN surface hardness.
- Mills differ in their composition. Each order comes with a surface hardness report.
AR235 Abrasion Resistant Steel Plate is designed with the following advantages:
1. Unmatched durability: AR235 Abrasion Resistant Steel Plate can withstand the harshest of conditions, making it ideal for use in mining, forestry, construction, and other heavy-duty applications.
2. High strength: The ar235 plate is manufactured from high-strength steel, making it resistant to deformation and capable of handling high loads.
3. Resistance to impact: AR235 Steel Plate is designed to withstand impact and can absorb energy to prevent damage or deformation.
4. Easy to weld: The Wear Resistant Steel 235 plate is designed for easy welding, making it easy to work with and to customize for specific applications.
AR235 Abrasion Resistant Steel Plate is the ultimate choice for extreme wear resistance. With its unmatched durability, high strength and resistance to impact, product is perfect for applications in mining, forestry, construction, and other heavy-duty industries.
