316L is molybdenum-bearing austenitic stainless steel,with 2-3% molybdenum content,which improves the 316L alloys corrosion resistance to pitting and crevice corrosion in chloride environments.The 'L' indicates 316L Stainless Steel is a low carbon version of Grade 316,which minimizes carbide precipitation due to welding,thereby avoids the problem of intergranular corrosion.
316L stainless steel has good creep and stress rupture properties under high temperatures, making it suitable for high temperature environments,as well as outstanding formability and weldability. 316L is the lower carbon version of 316 and is immune from sensitization; therefore, it is very frequently used in heavy gauge welded components.

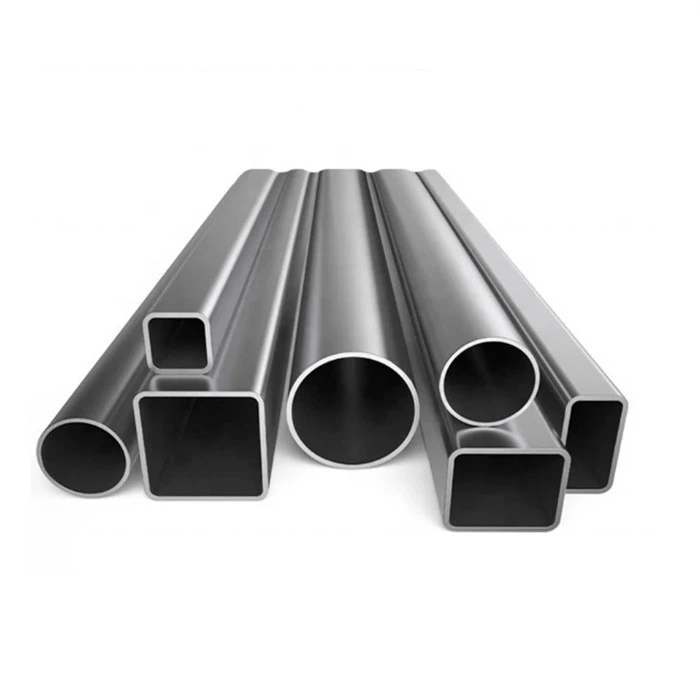

JBLSTEEL is a professional manufacturer and supplier of SS pipes in different shapes, sizes and dimensions.Stainless pipe is built in seamless, welded, and other forms and comes in round, square, and rectangular shapes,etc.
316L Stainless Steel Pipe Specification
| Specifications | ASTM A/ASME SA213/A249/A269 |
| Dimensions | ASTM, ASME and API |
| Size | 1/8″NB TO 30″NB IN |
| Schedule | SCH20, SCH30, SCH40, XS, STD, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Thickness | 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
| Form | Round, Rectangular, Square, Hydraulic Etc |
| Type | Seamless / Fabricated / ERW / Welded / LSAW Tubing |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Threaded |
316L Stainless Steel Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
316L Pipe Mechanical Properties
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
316SS Physical Properties
| Density lbm/in^3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10^-6) |
Modulus of Elasticity (psi x 10^6) |
Coefficient of Thermal Expansion (in/in)/°F x 10^-6 |
Specific Heat (BTU/lb/°F) |
Melting Range (°F) |
| 0.29 at 68°F | 100.8 at 68 212°F | 29.1 at 68°F | 29 | 8.9 at 32 – 212°F | 0.108 at 68°F | 2500 to 2550 |
| 9.7 at 32 – 1000°F | 0.116 at 200°F | |||||
| 11.1 at 32 – 1500°F |
Stainless Steel Pipe Price
JBLSTEEL is one of the most competitive suppliers of pipes and tubes from China. Our prices for Stainless Steel Pipes Tubes are very competitive.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. JBLSTEEL maintains a stock of all standard items and can export them at best competitive price for Stainless Steel Seamless and Welded Pipes.
SS Pipe Value Added Service
Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
- Eddy Current and ultrasonic tests (on request)
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding
We offer value-added services including polishing, annealing, heat treatment, and beveling for our Stainless Steel Pipes.
Stainless Steel Pipe Surface Finish
Stainless steel pipes and tubes are available in various finishes, including polished, brushed, and satin finishes, providing options for different aesthetic preferences and functional requirements.
JBLSTEEL-Company Profile
HENAN JINBAILAI INDUSTRIAL CO.,LTD. was established in 2008,and it is an integrated steel manufacturing company that produces and sells alloy and stainless steel products,we supply various sepcifications of Stainless Steel,Super Stainless Steel,Super Duplex,High Strength Steel Plate,Wear Resistant Steel Plate, Galvanized Steel,etc.
The inventory is sufficient and various,supporting processing and customization.For general information about our Stainless Steel Pipe or a free quote, do contact us.
