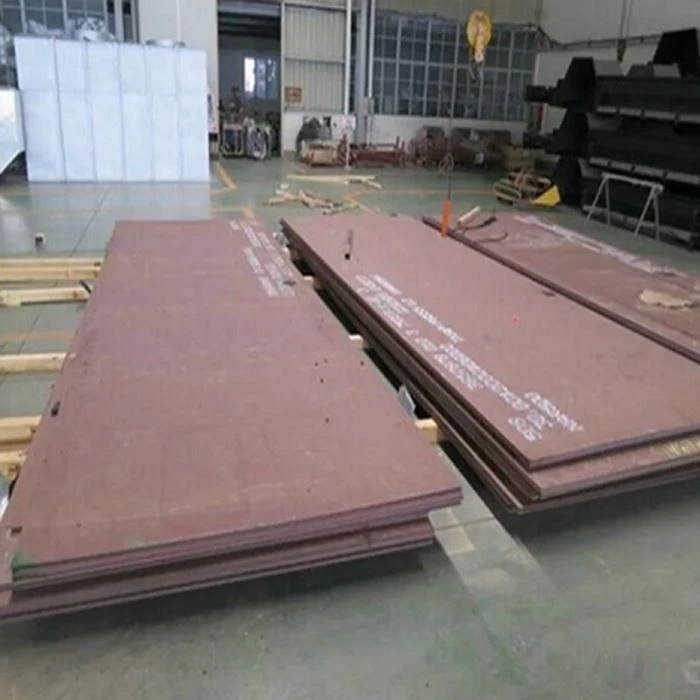

AR Wear Plate

High quality wear resistant plate with superior wear performance,also known as abrasion resistant steel,available in 400, 450, 500.
Wear-resistant steel plates resist wear, grinding, scratches and impacts.
Material:NM360,NM400,NM450,NM500,NM550,NM600,etc
Sample:support
Quick delivery and standard exporting package
OEM/ODM Available

Send Inquiry

Description

Abrasion resistant steel is a high-carbon alloy steel that is produced to resist wear and stress, developed for to sustain abrasive and impact wear exposure.AR Wear Plate with high strength, durability, long service life, easy processing, etc.,can withstand severe wear and tear in high-intensity working environments and has excellent impact resistance. AR Wear Plate is ideal for use where resistance to impact and wear is required, as well as where heavy machining is required.

wear resistant steel plate

Product Name	Abrasion resistant steel plate
Material	AR400, AR450, AR500, AR600,etc
Thickness	2-100mm
Width	1000-2200mm
Length	1-12m
Used	Building, Industry, Machinery, etc.
Certification	ISO9001, SGS, BV
Trade Terms	EXW,FOB,CIF CFR
Loading Port	TIANJIN,SHANGHAI,DALIAN QINGDAO,etc
Payment terms	1) 30% deposit by T/T, the balance against copy of B/L by T/T.
	2) 30% deposit by T/T, the balance by L/C at sight.
	3) 100% L/C at sight.
MOQ	1Ton
Packing Detail	Stasndard export package:Wooden pallet +paperboard +steel strip Customized requirements are accepted
Delivery time	Usually 7-15 dyas, or upon negotiation
Samples	Free samples are provided but the fright is borne by the buyer

wear steel plate

Steel Grade	C	Si	Mn	P	S	Cr	Mo	B	N	H	Ceq
NM360/NM400	≤0.20	≤0.40	≤1.50	≤0.012	≤0.005	≤0.35	≤0.30	≤0.002	≤0.005	≤0.00025	≤0.53
NM450	≤0.22	≤0.60	≤1.50	≤0.012	≤0.005	≤0.80	≤0.30	≤0.002	≤0.005	≤0.00025	≤0.62
NM500	≤0.30	≤0.60	≤1.00	≤0.012	≤0.002	≤1.00	≤0.30	≤0.002	≤0.005	≤0.0002	≤0.65
NM550	≤0.35	≤0.40	≤1.20	≤0.010	≤0.002	≤1.00	≤0.30	≤0.002	≤0.0045	≤0.0002	≤0.72

Abrasion Resistant Plate Mechanical Property

Grade	Thickness (mm)	tensile strength(MPa)	Elongation A(%)	Surface Brinell hardness(HBW)
NM300	≤80	≥1000	≥14	270-330
NM360	≤80	≥1100	≥12	330-390
NM400	≤80	≥1200	≥10	370-430
NM450	≤80	≥1250	≥7	420-480
NM500	≤70	-	-	≥470

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
20feet container load 25tons coils whose length is under 5.8m
40feet container load 25tons coils whose length is under 11.8m

Packing Details:Bundle with steel strip
Delivery Details:Use trays to facilitate loading and unloading
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required

ar400 plates
