Alloy 321 stainless steel is a titanium-stabilized austenitic steel that offers excellent general corrosion resistance,similar to type 304 but with a titanium addition.Its high strength, durability and ductility make it ideal for use in a wide range of industrial applications, from chemical processing to aerospace engineering.
By adding titanium to the steel, 321 stainless activates the chromium in the alloy, making it more resistant to intergranular corrosion in high-temperature applications.This is a form of corrosion that occurs along grain boundaries, due to the formation of precipitates during high-temperature exposure.Therefore,321 steel exhibits great resistance to intergranular corrosion.

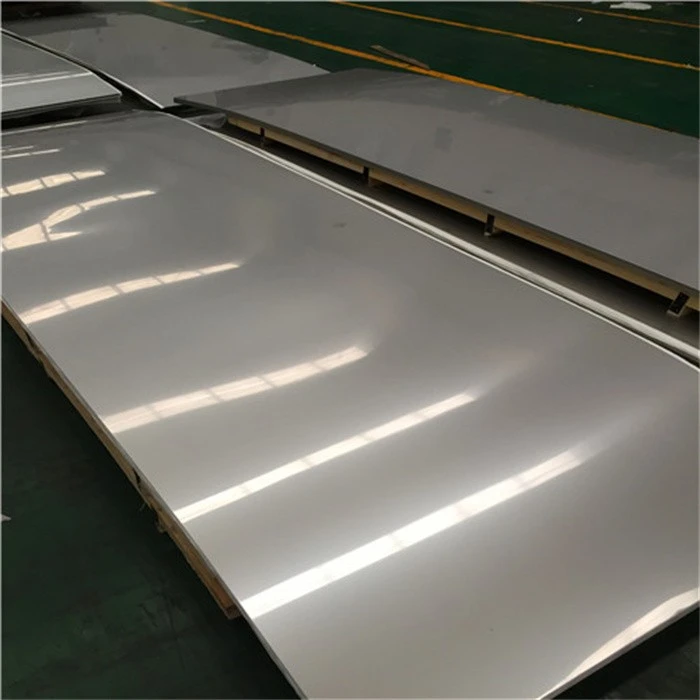

321 Stainless Steel Plate Specification
|
product name |
stainless steel plate/sheet |
|
grade |
201/202/301/303/304/304L/316/316L/321/310S/401/409/410/420J1/420J2/430/439/443/444,etc |
|
Width |
10mm to 2500mm, or customized |
|
thickness |
0.05mm to 100mm, or customized |
|
technology |
hot rolled,cold rolled |
|
standard |
JIS/SUS/GB/DIN/ASTM/AISI/EN |
|
surface |
BA,2B,2D,4K,6K,8K,NO.4,HL,SB,Embossed |
|
certicification |
SGS,BV,as request |
|
Payment terms |
30% payment by T/T as deposit,the balance 70% before shipping,or negotiable |
|
Sample |
provided freely |
|
Delivery time |
7~15 days after receive the 30% advance payment |
|
price terms |
FOB, EXW, CIF, CFR |
|
packing |
water-proof papers+edge protection+wooden pallets |
321 Material Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
321 Steel Chemical Composition
| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Titanium | Manganese | Nickel | Nitrogen |
| 0.008 | 0.75 | 0.03 | 0.045 | 17.0-19.0 | 5 x (C + N) min.-0.70 max. | 2.00 | 9.0-12.0 | 0.10 |
321 Stainless Steel Mechanical properties
| Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness | |
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
| 321 | 515 | 205 | 40% | 95 | 217 |
321 Plate Surface Finish
321 ss plate is available in various surface finishes, including 2B (cold-rolled, annealed, and pickled), No. 4 (brushed finish), and others, depending on the specific requirements of the application.
321 Stainless Steel Plate Gauges
| NOMINAL DECIMAL | STANDARD VARIANCE FROM | |
| METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
321 Sheet Processing Service
321 SS sheet has been precision processed, has good surface quality and flatness, and is easy to cut, bend and weld,has great advantages in factory production, engineering assembly and machining.
