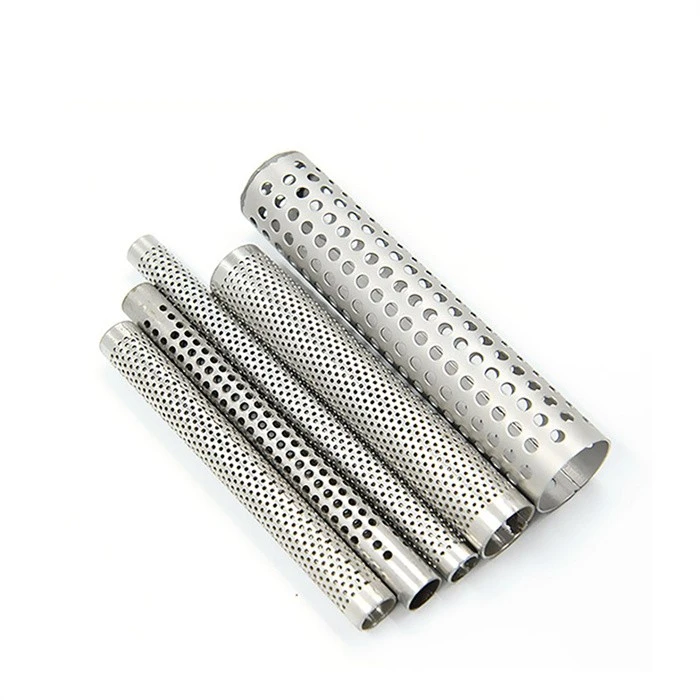

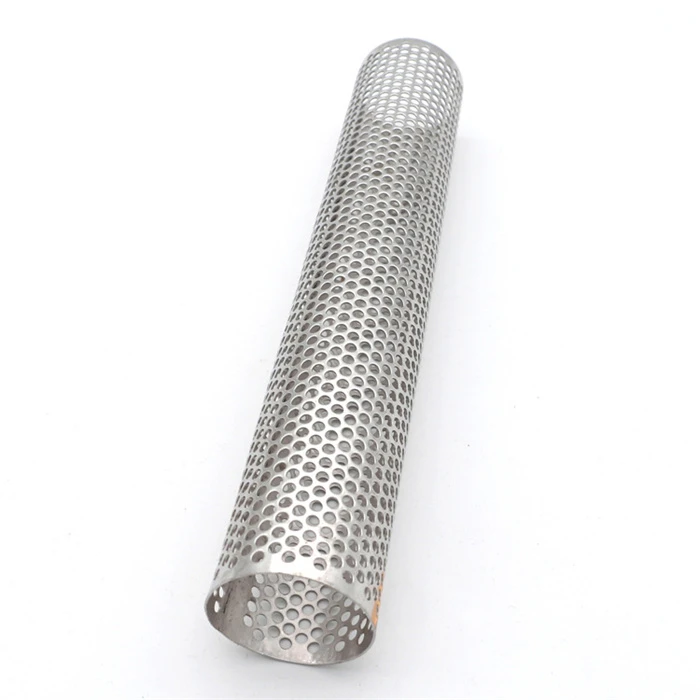

Stainless steel perforated tube is a tubular product made of stainless steel,made by punching holes in the wall of the stainless steel pipe. It has a porous structure. The holes can be set in different shapes, sizes, and arrangements according to different needs, to meet various specific needs and application scenarios
Perforated stainless steel is a sheet of stainless steel that has been stamped, punched, or cut to create specific hole patterns or openings. It's utilized for aesthetic purposes like architectural accents and performance reasons such as filtration or ventilation.
 |
 |
 |
|
Perforated Stainless Steel Pipe |
Ss Perforated Tubing | Perforated Stainless Steel Tube |
JBLSTEEL is a leading manufacturer and supplier of the Stainless Steel Pipe available in different types, shapes and process methods. There are different grades and specifications such as the Grade 304, 316,201 and the Standard A312,A269,A249,etc.The Stainless Steel Pipe Price ranges depending mostly on the grade of the material.Please feel free to contact us for more information on the Stainless Steel Tube products and pricing.
Stainless Steel Perforated Tube Specification
| Standard | ASTM A249, A269, A270 |
| OD. | 1/8" NB to 24" NB, 1/4" OD to 24" OD sizes stainless steel welded tubes also available |
| Thickness | 0.2mm to 15mm |
| Hole size | 3mm dia on a 6mm pitch |
| Opening diameter | 0.2mm to 100mm |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS201 |
| Finish | BA Finish inside and outside, Perforated finish inside and outside |
| Type | Welded, EFW, ERW, Seamless,or as request |
| Packing | Sleeved, Ends Capped, Wooden Boxed,Export Standard Package or as requirement |
The Stainless Steel Perforated Pipe can be customized accprding to your requirement;Various thickness/hole diameter/shape is available arbitrary cutting
Stainless Steel Pipe Price
JBLSTEEL is one of the most competitive suppliers of pipes and tubes from China.Our prices for Stainless Steel Pipes Tubes are very competitive.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. JBLSTEEL maintains a stock of all standard items and can export them at best competitive price for Stainless Steel Seamless and Welded Pipes.
Stainless Steel Perforated Tubing Equivalent Grades
| GRADE | UNS NO | DIN/WERKSTOFF |
| 304 | S30400 | 1.4301 |
| 304L | S30403 | 1.4306 |
| 316 | S31600 | 1.4436 |
| 316L | S31603 | 1.4404 |
Stainless Pipe Chemical Composition
| Grade | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | |
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
SS Tube Mechanical Properties
| Material | Heat Treatment |
Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | |||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
SS Pipe Valued Service
We offer value-added services including polishing, annealing, heat treatment, and beveling for our SS Pipes.
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding
Stainless Steel Pipe Surface Finish
Details:2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,brush.
Multiple specifications are available.
JBLSTEEL-Company Profile
HENAN JINBAILAI INDUSTRIAL CO.,LTD. was established in 2008,and it is an integrated steel manufacturing company that produces and sells alloy and stainless steel products,we supply various sepcifications of Stainless Steel,Super Stainless Steel,Super Duplex,High Strength Steel Plate,Wear Resistant Steel Plate, Galvanized Steel,etc.
The inventory is sufficient and various,supporting processing and customization.For general information about our Stainless Steel Pipe or a free quote, do contact us.
