Sch 40 stainless steel pipes are available in different wall thicknesses at different diameters and are designed to meet the needs of applications under moderate pressure and temperature conditions.Sch 40 stainless steel pipe is a common pipe specification. "Sch" stands for "Schedule" (pipe wall thickness grade), and "40" is the standard number for pipe wall thickness.
Sch 40 stainless steel pipes dimensions also vary depending upon the shape that they are molded in for instance square, round, rectangle, and so on. Stainless steel schedule 40 pipes are available in seamless and welded.

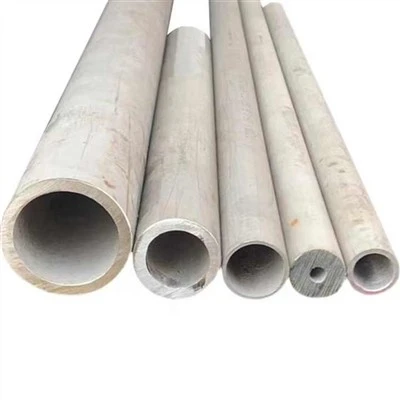

Stainless Steel Pipe Specification
|
Type |
Stainless Steel Pipe |
|
Material |
201,304,304L,316,316L,316Ti,321,309S,310S,317L,347H,2205,2507,904L,etc |
|
Thinckness |
0.5-50mm,or as requirement |
|
Outer diameter |
3-1220mm or as requirement |
|
Length |
6m or as customer's requirement |
|
Finish |
Polished, Pickled,hairline,mirror |
|
Shape |
Round,square, rectangular,oval |
|
Technology |
Seamless,Welded |
|
Standard |
JIS, AISI, ASTM, GB, DIN, EN ,etc. |
|
MOQ |
1Ton,sample order is available |
|
Certificate |
SGS,BV,also accept Third-party inspection |
|
Packaging |
Standard exporting packing |
Stainless Steel Pipe Price
JBLSTEEL is one of the most competitive suppliers of pipes and tubes from China. Our prices for Stainless Steel Pipes Tubes are very competitive.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. JBLSTEEL maintains a stock of all standard items and can export them at best competitive price for Stainless Steel Seamless and Welded Pipes.
Schedule 40 Stainless Steel Pipes Dimension
| Nominal size [inches] | Outside diameter [inches] | Outside diameter [mm] | Wall thickness [inches] | Wall thickness [mm] | Weight [lb/ft] | Weight [kg/m] |
| 1/2 Inches | 0.840 Inches | 21.3 MM | 0.065 Inches | 1.65 MM | 0.54 lb/ft | 0.80 kg/m |
| 3/4 Inches | 1.050 Inches | 26.7 MM | 0.065 Inches | 1.65 MM | 0.69 lb/ft | 1.03 kg/m |
| 1 Inches | 1.315 Inches | 33.4 MM | 0.065 Inches | 1.65 MM | 0.87 lb/ft | 1.30 kg/m |
| 1 1/4 Inches | 1.660 Inches | 42.2 MM | 0.065 Inches | 1.65 MM | 1.12 lb/ft | 1.66 kg/m |
| 1 1/2 Inches | 1.900 Inches | 48.3 MM | 0.065 Inches | 1.65 MM | 1.28 lb/ft | 1.91 kg/m |
| 2 Inches | 2.375 Inches | 60.3 MM | 0.065 Inches | 1.65 MM | 1.61 lb/ft | 2.40 kg/m |
| 2 1/2 Inches | 2.875 Inches | 73.0 MM | 0.083 Inches | 2.11 MM | 2.49 lb/ft | 3.71 kg/m |
| 3 Inches | 3.500 Inches | 88.9 MM | 0.083 Inches | 2.11 MM | 3.05 lb/ft | 4.54 kg/m |
| 3 1/2 Inches | 4.000 Inches | 101.6 MM | 0.083 Inches | 2.11 MM | 3.50 lb/ft | 5.21 kg/m |
| 4 Inches | 4.500 Inches | 114.3 MM | 0.083 Inches | 2.11 MM | 3.95 lb/ft | 5.88 kg/m |
| 5 Inches | 5.563 Inches | 141.3 MM | 0.109 Inches | 2.77 MM | 6.40 lb/ft | 9.52 kg/m |
| 6 Inches | 6.625 Inches | 168.3 MM | 0.109 Inches | 2.77 MM | 7.65 lb/ft | 11.38 kg/m |
| 8 Inches | 8.625 Inches | 219.1 MM | 0.109 Inches | 2.77 MM | 9.99 lb/ft | 14.87 kg/m |
| 10 Inches | 10.750 Inches | 273.1 MM | 0.134 Inches | 3.4 MM | 15.29 lb/ft | 22.76 kg/m |
| 12 Inches | 12.750 Inches | 323.9 MM | 0.156 Inches | 3.96 MM | 21.13 lb/ft | 31.44 kg/m |
| 14 Inches | 14.000 Inches | 355.6 MM | 0.156 Inches | 3.96 MM | 23.22 lb/ft | 34.56 kg/m |
| 16 Inches | 16.000 Inches | 406.4 MM | 0.165 Inches | 4.19 MM | 28.11 lb/ft | 41.83 kg/m |
| 18 Inches | 18.000 Inches | 457.0 MM | 0.165 Inches | 4.19 MM | 31.64 lb/ft | 47.09 kg/m |
| 20 Inches | 20.000 Inches | 508.0 MM | 0.188 Inches | 4.78 MM | 40.12 lb/ft | 59.70 kg/m |
| 22 Inches | 22.000 Inches | 559.0 MM | 0.188 Inches | 4.78 MM | 44.18 lb/ft | 65.75 kg/m |
| 24 Inches | 24.000 Inches | 610.0 MM | 0.218 Inches | 5.54 MM | 55.85 lb/ft | 83.11 kg/m |
| 30 Inches | 30.000 Inches | 762.0 MM | 0.250 Inches | 6.35 MM | 80.02 lb/ft | 119.09 kg/m |
SS Pipe Value Added Service
Material Testing
- Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
- Eddy Current and ultrasonic tests (on request)
Process Service:Bending,Welding,Decoiling,Punching,Cutting,Moulding
We offer value-added services including polishing, annealing, heat treatment, and beveling for our Stainless Steel Pipes.
Stainless Steel Pipe Surface Finish
Stainless steel pipes and tubes are available in various finishes, including polished, brushed, and satin finishes, providing options for different aesthetic preferences and functional requirements.
JBLSTEEL-Company Profile
HENAN JINBAILAI INDUSTRIAL CO.,LTD. was established in 2008,and it is an integrated steel manufacturing company that produces and sells alloy and stainless steel products,we supply various sepcifications of Stainless Steel,Super Stainless Steel,Super Duplex,High Strength Steel Plate,Wear Resistant Steel Plate, Galvanized Steel,etc.
The inventory is sufficient and various,supporting processing and customization.For general information about our Stainless Steel Pipe or a free quote, do contact us.
